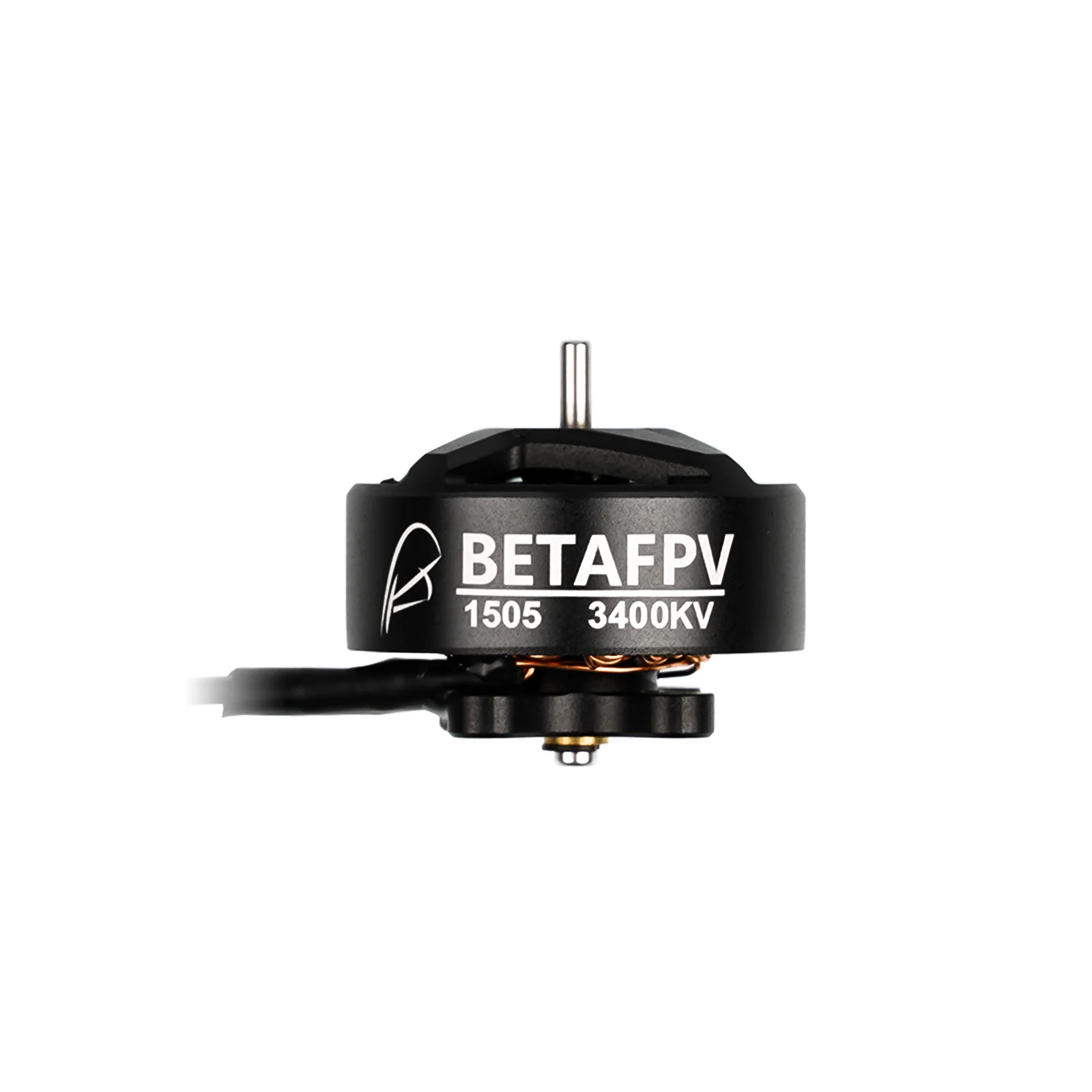

1505 3400KV Brushless motor is designed for Pavo30 3-inch pusher cinewhoop Drone . Combined with Gemfan D76 5-Blades propellers, it offers the drone a powerful flight and less noise. In the meantime, we highly recommend this motor for building a 3-4S quadcopter with F722 AIO 35A Brushless flight controller.

Bullet Points

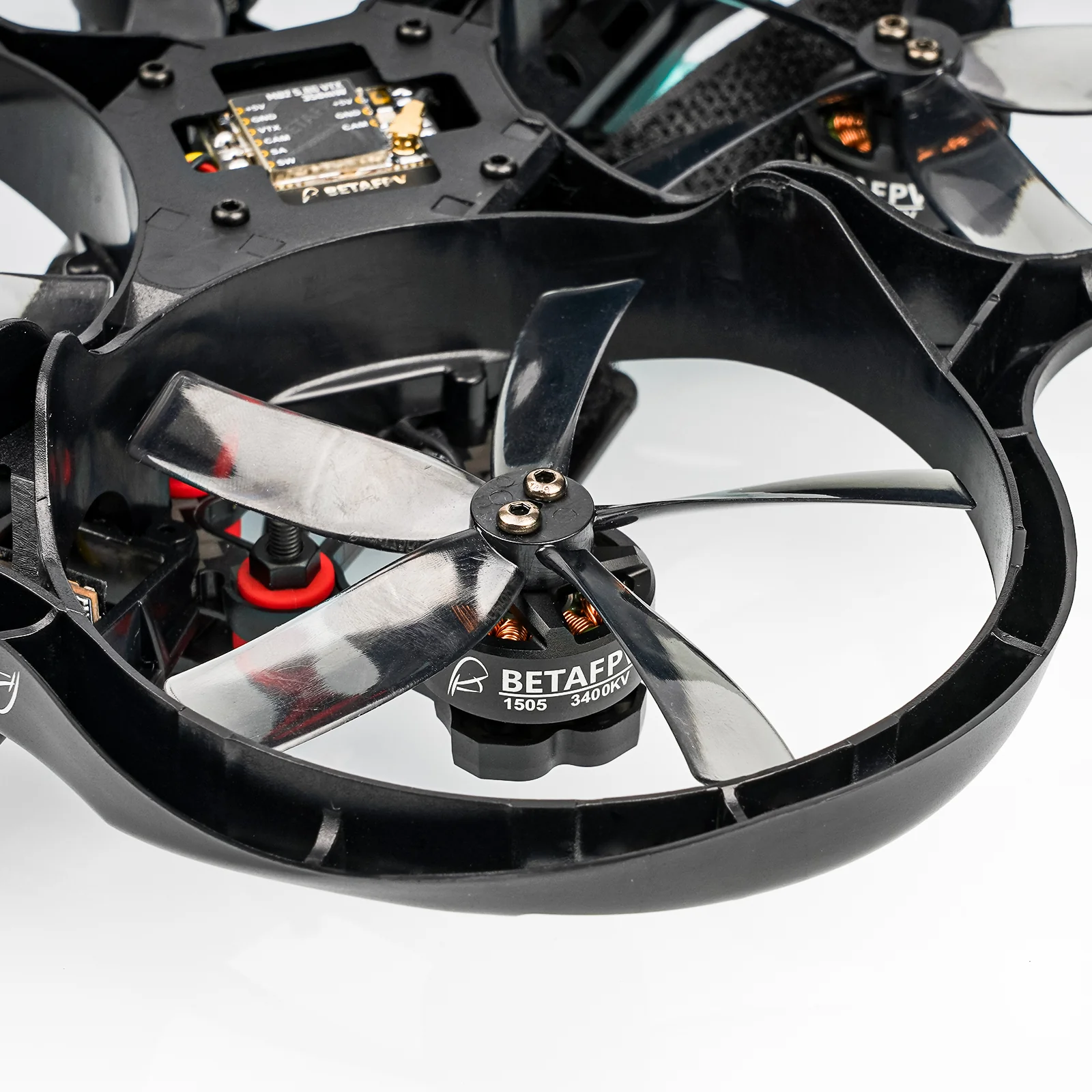

• 1505 3400KV brushless motor is designed for Pavo30 Whoop Drone, which could offer pilots a more smooth and more powerful flight and lead the Beta95X V3 series drones to the next level.
• Gemfan D76 5-Blades props will be the best match with 1505 3400KV motor, this high efficient power system lays the foundation for powerful flight and less noise.
• Perfectly match with F722 AIO 35A Brushless flight controller, this motor will bring pilots a powerful flight experience with 4S battery

Recommended Parts

• Frame: Pavo30 frame kit
• Flight Controller: F722 AIO 35A Brushless flight controller
• Compatible Propellers: HQ 75 5-Blade 1.5 shaft hole propeller
• Battery: 750mAh 4S battery/ 850mAh 4S battery/ 450mAh 4S battery

Specification

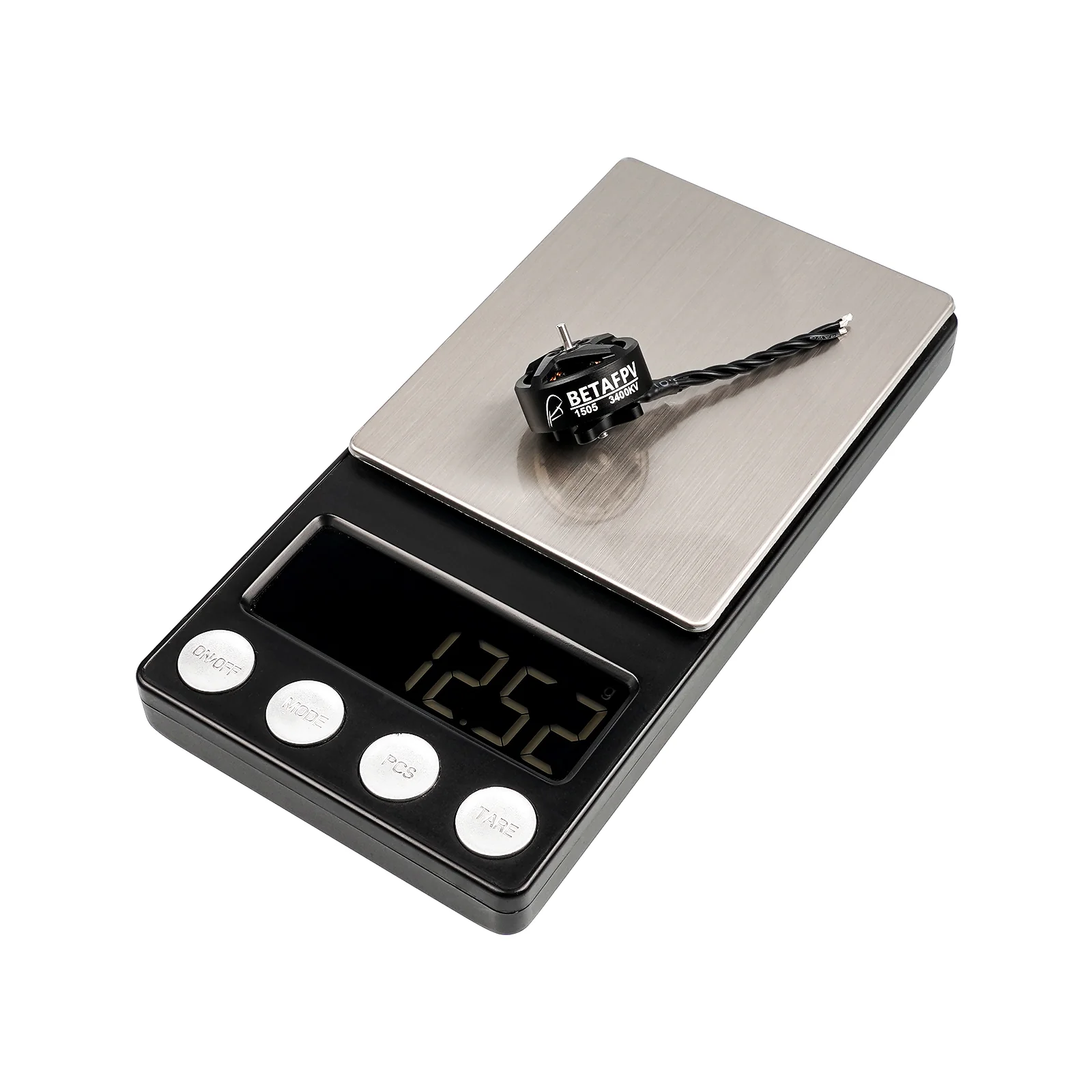

• Weight: 12.52g/pc
• Shaft length: 4mm
• Shaft diameter: 1.5mm
• Size: 21mm*21mm*18mm
• Motor Mount Holes: 4-M2EQS-φ5
• KV (rpm/V): 3400KV
• Input Voltage: 3-4S lipo
• Cables: 40mm long, 24AWG cables

Package

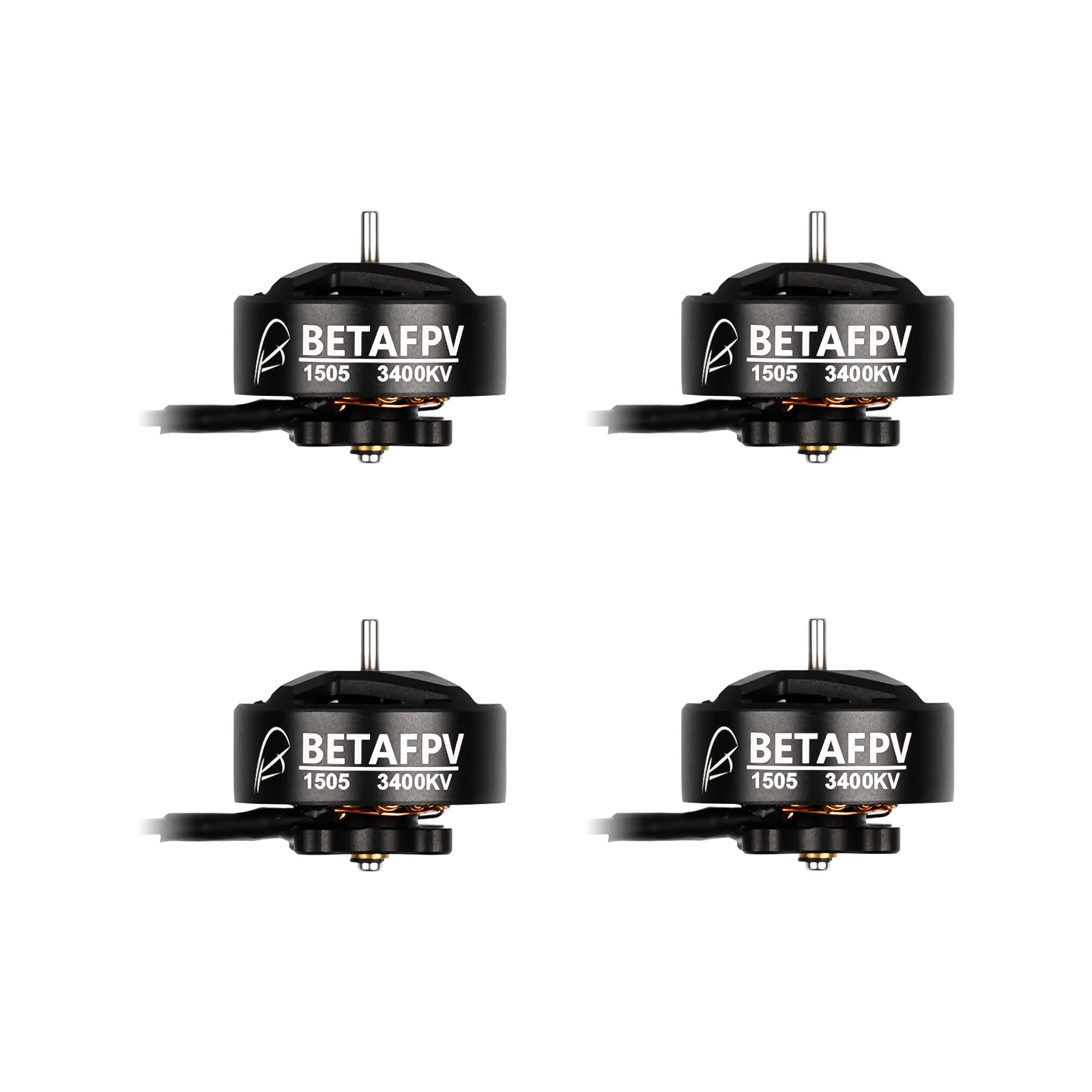

• 1 or 4 * 1505 3400KV Brushless Motors
• 16 * M2 Screws
